The 695 deep groove ball bearing is a high-precision miniature bearing designed for lightweight mechanical systems requiring smooth rotation, low vibration, and reliable load handling. Engineered for compact assemblies, it delivers consistent performance in high-speed applications with minimal noise and torque.
| Quantity: | |
|---|---|
The 695 deep groove ball bearing represents the pinnacle of micro-mechanical engineering, fundamentally transforming how compact rotational systems operate under demanding conditions. When integrated into your assemblies, you will immediately notice the whisper-quiet acoustic profile and the virtually frictionless glide of the inner ring, a direct result of meticulously ground raceways and an optimized ball complement. This bearing is not merely a standard replacement part; it is a vital mechanical upgrade that eliminates the harsh, grinding vibrations often associated with inferior components, thereby actively protecting your sensitive electronics and micro-gears from premature wear. The tactile smoothness of the rotation speaks to the rigorous heat treatment and precision polishing applied to every single unit before it reaches your facility. By significantly reducing rotational resistance, this bearing dramatically lowers the power consumption in micro-motors, allowing your end products to run cooler, longer, and with unparalleled consistency. Whether exposed to continuous high-speed cycles or intermittent precision stops, the structural integrity of this bearing ensures that your machinery maintains its exact calibration, ultimately reducing maintenance downtime and elevating the perceived quality and reliability of your finished equipment.
Parameter | Value | Description |
Bearing Model | 695 | Miniature deep groove ball bearing |
Inner Diameter (d) | 5 mm | Shaft diameter |
Outer Diameter (D) | 13 mm | Housing bore diameter |
Width (B) | 5 mm | Bearing width |
Chamfer (r min) | 0.3 mm | Minimum corner radius |
Item | Specification |
Bearing Type | Single-row deep groove ball |
Precision Grade | ABEC-5 / ABEC-7 |
Noise Level | Z1 / Z2 (low noise) |
Sealing Type | Open / ZZ / 2RS |
Material | Chrome Steel (GCr15) / Stainless Steel |
Cage Material | Steel or high-performance polymer |
Lubrication | Factory grease or oil lubrication |
Operating Temperature | -20°C to +120°C |
Load Type | Value |
Dynamic Load (Cr) | ~0.70 kN |
Static Load (Cor) | ~0.30 kN |
Note: Load values may vary depending on lubrication, clearance, and operational conditions.
Bearing Version | Max Speed |
Open | ~42,000 RPM |
Shield (ZZ) | ~32,000 RPM |
| Sealed (2RS) | ~22,000 RPM |
695 – Open design for general micro-mechanical applications

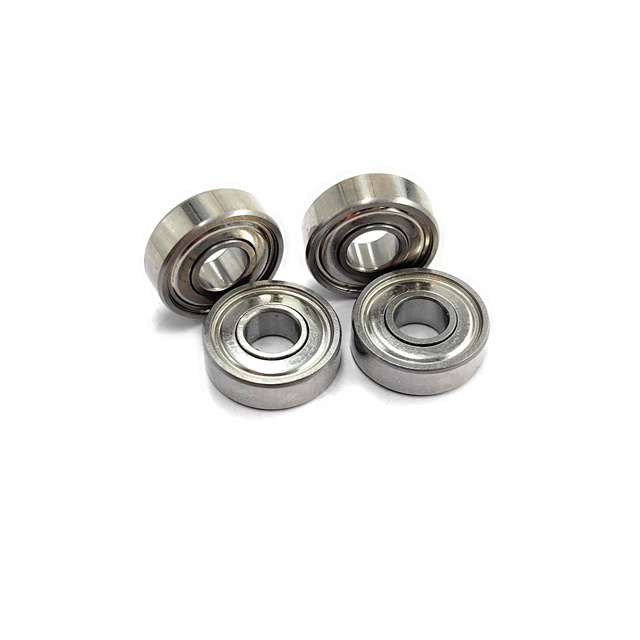

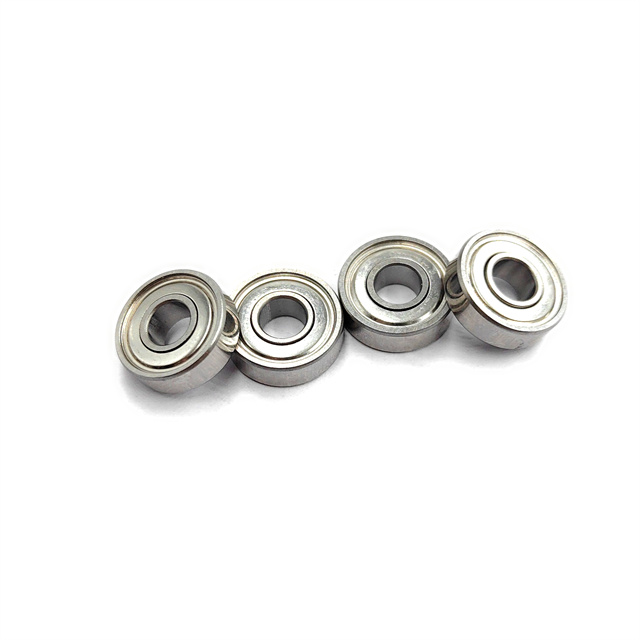

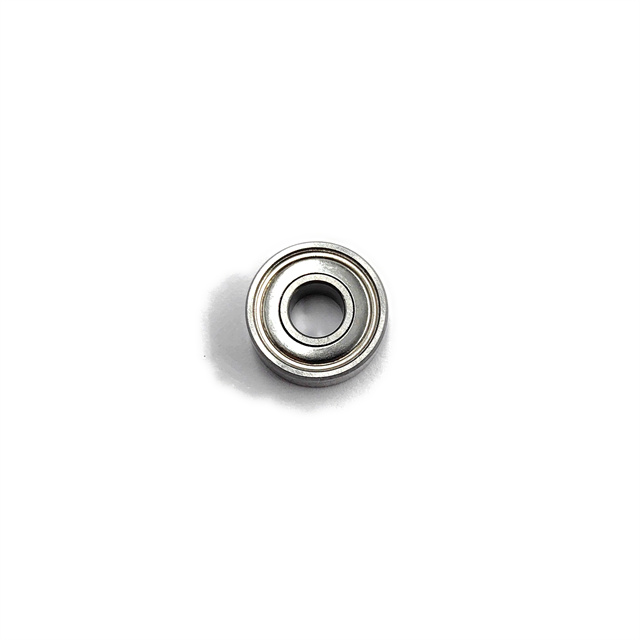

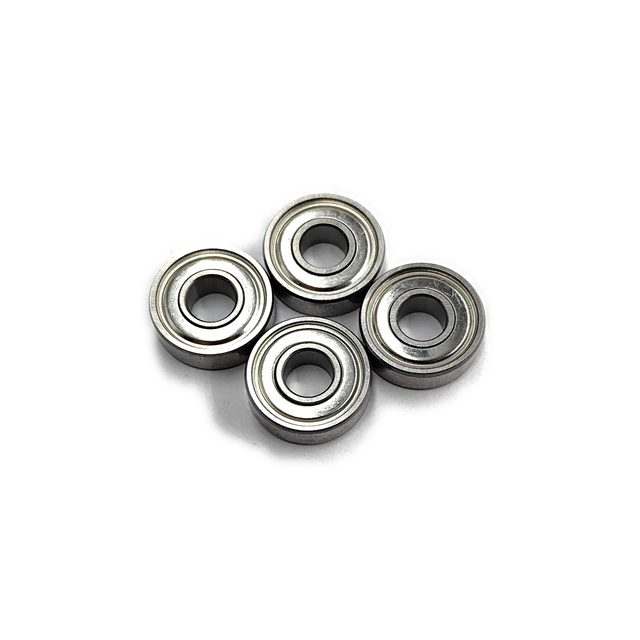

695ZZ – Metal-shielded for dust and debris protection
695-2RS / 695-2RS1 – Rubber-sealed for moisture and contamination resistance
Engineered to exceed standard industry expectations, our 695 series brings exceptional reliability to the most intricate mechanical environments. By focusing on the exact pain points of assembly designers—such as excessive heat generation and premature wear—we have developed a component that actively enhances the lifespan of your products.
Acoustic Excellence: Achieves strict Z1 and Z2 noise levels, ensuring your final consumer products operate with a premium, silent hum rather than disruptive mechanical clatter.
Thermal Stability: The optimized internal geometry minimizes friction-induced heat, keeping surrounding sensitive electronic components safe from thermal degradation.
Energy Efficiency: The ultra-low starting torque translates directly into longer battery life for portable devices and lower power draw for wired motor systems.
Structural Rigidity: Despite its miniature footprint, the robust raceway design effortlessly handles light to moderate radial loads without suffering from micro-deformations.
The architectural foundation of the 695 bearing is its highly controlled physical footprint. Measuring exactly 5x13x5mm, this ultra-compact component is meticulously crafted to fit into the most restricted housing spaces without compromising on load-bearing capabilities. This precise sizing empowers engineers to design sleeker, lighter, and more aerodynamic equipment.
Micro-Footprint: The 13mm outer diameter allows for the tight clustering of multiple rotating shafts in complex, space-limited gearboxes.
Weight Reduction: Its minimal mass significantly lowers the overall weight of handheld or airborne devices, directly improving user fatigue and operational agility.
Shaft Compatibility: The precisely calibrated 5mm bore ensures a snug, slip-free fit on standard micro-shafts, actively preventing fretting corrosion.
Chamfer Precision: A strictly maintained 0.3mm minimum corner radius guarantees seamless seating within the housing, eliminating the risk of installation misalignments.
The longevity of any rotational system is dictated by its metallurgical integrity. We construct our 695 bearings using premium Chrome Steel (GCr15) or high-grade Stainless Steel, subjecting each batch to rigorous, controlled heat treatments. This creates a surface that feels glass-smooth to the touch yet possesses the underlying hardness required to resist continuous metal-to-metal fatigue.
Wear Resistance: Advanced heat treatment hardens the raceways, drastically reducing the risk of spalling or pitting over millions of high-speed rotational cycles.
Corrosion Mitigation: The stainless steel variant offers exceptional defense against ambient moisture, protecting your investment in humid or chemically active environments.
Grinding Perfection: Precision-ground surfaces minimize microscopic asperities, resulting in a flawless rolling contact that extends the time between required maintenance intervals.
Cage Resilience: Available with high-performance polymer cages that resist degradation from synthetic lubricants and withstand severe high-speed centrifugal forces.
When your application demands absolute exactness, the performance metrics of the 695 bearing deliver uncompromising results. Calibrated to ABEC-5 and ABEC-7 precision grades, these bearings provide a rotational fluidity that eliminates runout and maintains strict shaft centering. This level of precision is critical for applications where even a fraction of a millimeter of deviation can cause catastrophic system failure.
Extreme Velocity Handling: Capable of reaching up to 42,000 RPM in the open configuration, supporting ultra-fast micro-turbines and high-speed spindles without seizing.
Vibration Eradication: High precision grades ensure that rotational kinetic energy is transferred smoothly, preventing harmonic vibrations from disrupting sensitive optical or sensor arrays.
Consistent Torque Delivery: The low starting and running torque guarantee that your motors do not experience sudden, damaging spikes in electrical current demand.
Clearance Optimization: Options for C0, C2, and C3 radial clearances allow you to perfectly match the bearing to your specific thermal expansion and load requirements.
Environmental contamination is the primary enemy of bearing longevity. To safeguard the intricate internal geometry of the 695 bearing, we offer a comprehensive suite of shielding and sealing technologies. Whether your equipment operates in a sterile laboratory or a dust-filled workshop, these protective barriers ensure the internal lubricant remains pristine and highly effective.
Open Architecture: Ideal for sealed, clean-room environments where external lubrication systems are utilized, allowing for maximum speed capabilities up to 42,000 RPM.
Metal Shields (ZZ): Dual metal shields provide a robust defense against airborne particulates and larger debris, perfect for standard industrial automation settings while maintaining a high speed limit of 32,000 RPM.
Rubber Seals (2RS): The contact rubber seals create an impermeable barrier against moisture and fine dust, essential for outdoor devices or washdown environments, supporting speeds up to 22,000 RPM.
Lubricant Retention: Both ZZ and 2RS variants lock in the factory-applied premium grease, creating a reliable, maintenance-free component for the entirety of its operational life.
The versatile nature of the 695 miniature bearing makes it an indispensable asset across a multitude of advanced sectors. By providing reliable, low-friction movement, this component acts as the silent workhorse behind the technology that drives modern convenience and industrial progression. Its integration instantly elevates the reliability of the host machine.
Medical & Laboratory Devices: Ensures the smooth, precise movement of robotic surgical arms and the quiet operation of blood centrifuges, enhancing patient comfort and diagnostic accuracy.
Office Automation: Eliminates paper jams and annoying mechanical squeaks in high-volume printers, scanners, and copiers, ensuring a professional acoustic environment.
Robotics & Automation: Provides the necessary joint fluidity and actuator responsiveness for micro-robotics and automated assembly line modules.
Precision Micro-Motors: Acts as the foundational support for compact electric drives, maximizing energy transfer and minimizing dangerous heat accumulation.
Compact Ventilation: Enables small cooling fans in servers and electronics to run continuously for years without the risk of bearing seizure.
We understand that off-the-shelf solutions do not always align with proprietary engineering designs. Our comprehensive OEM services are structured to adapt the 695 bearing to your precise technical specifications. From the molecular composition of the lubricant to the exterior branding, we act as a seamless extension of your own manufacturing capabilities.
Tailored Lubrication: Selection of high-speed, low-noise, or extreme-temperature greases to match the exact thermal and kinetic profile of your specific application.
Clearance Calibration: Custom radial clearance settings (C0, C2, C3) to accommodate unique press-fit interferences or operating temperature gradients within your housing.
Private Labeling: Precision laser-etching of your company’s part numbers or logos directly onto the bearing shields, enhancing your brand's professional presentation and traceability.
Bespoke Packaging: Customized packaging solutions designed to integrate flawlessly into your automated assembly lines or aftermarket distribution networks.
Prototype Verification: Rapid sampling and pre-production testing protocols to ensure the customized bearing performs flawlessly before you commit to full-scale deployment.
Navigating global procurement requires a partner who delivers not just superior components, but also logistical peace of mind. By sourcing directly from our advanced manufacturing facilities, you bypass intermediary markups and secure a highly competitive pricing structure. We are dedicated to stabilizing your production schedules through unwavering supply consistency.
Direct-from-Factory Pricing: Optimized production workflows significantly reduce overhead, allowing us to pass substantial cost savings directly to your procurement department.
Scalable Production: Whether you require a small batch for prototype testing or millions of units for global product rollouts, our agile manufacturing lines adapt instantly to your volume needs.
Reliable Lead Times: Strict inventory management and streamlined logistics ensure that your assembly lines never face costly downtime due to component shortages.
Consistent Quality Control: Every batch undergoes identical, rigorous inspection protocols, guaranteeing that the millionth bearing performs exactly like the first prototype.
Selecting the right component partner is a critical strategic decision that heavily impacts your product's market reputation. We bring decades of specialized metallurgical and mechanical expertise directly to your engineering table. Our commitment goes beyond merely supplying parts; we provide comprehensive technical support to ensure your rotational systems achieve maximum efficiency and durability.
Engineering Expertise: Our technical team collaborates directly with your designers to recommend the perfect bearing variant, actively preventing costly over-engineering or under-specifying.
Stringent Quality Assurance: Utilizing advanced acoustic testing and dimensional laser scanning to guarantee every bearing meets strict ABEC standards before it leaves our facility.
Global Compliance: All materials and lubricants comply with international environmental and safety regulations, ensuring your end products face no regulatory hurdles in any market.
Responsive Support: Dedicated account managers provide rapid responses to technical inquiries, order tracking, and post-delivery assistance, ensuring a completely frictionless partnership.
The ABEC-7 grade offers significantly tighter dimensional tolerances and lower radial runout compared to ABEC-5. This results in smoother operation, reduced vibration, and the ability to maintain stability at the absolute maximum speed limits. ABEC-7 is highly recommended for ultra-precise instrumentation and optical devices, whereas ABEC-5 is excellent for standard high-speed motors and general automation.
Sealing types introduce different levels of physical friction. The Open type has no seals, offering zero friction and allowing speeds up to 42,000 RPM. The ZZ (metal shield) creates a minimal non-contact barrier, slightly reducing the limit to 32,000 RPM. The 2RS (rubber seal) makes physical contact with the inner ring to block moisture and fine dust, which increases friction and limits the maximum speed to 22,000 RPM.
While deep groove ball bearings like the 695 are primarily engineered to support radial loads (up to ~0.70 kN dynamically), their deep raceway geometry allows them to accommodate light axial (thrust) loads in both directions. However, for applications with heavy, continuous, or shock axial loads, a different bearing configuration may be required to prevent premature raceway fatigue.
Chrome Steel (GCr15) is the industry standard, offering exceptional hardness, high load capacity, and excellent wear resistance for general indoor or sealed applications. Stainless steel should be selected when the bearing will be exposed to high humidity, corrosive chemicals, or when used in medical and food-grade environments where rust prevention is paramount, even though it possesses a marginally lower load capacity than chrome steel.
Radial clearance dictates the internal space between the balls and the raceways. C0 is standard for normal ambient conditions. C2 provides a tighter fit for precision applications with minimal vibration but generates more internal heat. C3 offers a larger internal clearance, which is absolutely critical for high-temperature environments or extreme high-speed operations where thermal expansion of the metal occurs, preventing the bearing from seizing as it heats up during operation.
If you are sourcing a 695 deep groove ball bearing manufacturer or OEM partner, we offer technical expertise, consistent quality, and dependable delivery to support your industrial and OEM projects.
