The 6900 Deep Groove Ball Bearing is a compact, single-row bearing engineered for high-speed, low-noise applications in precision instruments and micro drives. It offers reliable performance in limited spaces, supporting smooth rotation and extended fatigue life for demanding OEM requirements.
| Quantity: | |
|---|---|
The 6900 deep groove ball bearing represents the pinnacle of rotational mechanics, meticulously crafted to eliminate friction and elevate the operational efficiency of your advanced machinery. When handling this component, the immediate tactile feedback is one of absolute rigidity and a flawless metallic finish, a direct testament to the premium GCr15 bearing steel utilized in its construction. During operation, the bearing emits a barely perceptible, uniform hum—an acoustic profile achieved through optimized raceway geometry and stringent Z1/Z2 dampening standards. This exceptional vibration control ensures that sensitive electronic drives, optical lenses, and precision medical instruments remain completely undisturbed by mechanical resonance, allowing your final products to function with absolute precision.
By integrating this specific bearing into your manufacturing assemblies, you actively mitigate the risk of premature equipment failure and costly downtime. The meticulously engineered internal geometry distributes radial and axial loads evenly across the rolling elements, preventing localized wear and thermal expansion even under continuous, high-speed duty cycles. Whether deployed in automated robotic joints or intricate office machinery, the seamless glide of the internal steel balls against the micro-polished raceways dramatically reduces energy consumption and thermal output. Consequently, your end-products will benefit from extended maintenance intervals, lower operational temperatures, and a significantly enhanced lifespan, ultimately protecting your brand's reputation for reliability in highly demanding industrial sectors.
Parameter | Value | Description |
Bearing Model | 6900 | Deep Groove Ball Bearing |
Inner Diameter (d) | 10 mm | Shaft diameter |
Outer Diameter (D) | 22 mm | Housing bore diameter |
Width (B) | 6 mm | Bearing width |
Chamfer (r min) | 0.3 mm | Minimum chamfer size |
Item | Specification |
Bearing Structure | Single-row deep groove ball bearing |
Precision Grades | ABEC-1 / ABEC-3 / ABEC-5 |
Noise Level | Z1 / Z2 |
Seal / Shield Options | Open / ZZ / 2RS |
Material | GCr15 bearing steel / Stainless steel |
Cage Material | Steel cage / Polyamide cage |
Lubrication | Pre-greased or oil |
Operating Temperature | -20°C to +120°C |
Load Type | Value |
Dynamic Load Rating (Cr) | Approx. 3.20 kN |
Static Load Rating (Cor) | Approx. 1.50 kN |
Load values are typical references; actual ratings may vary based on clearance, lubrication, and operating conditions.
Bearing Version | Limiting Speed |
Open Type | ~36,000 RPM |
Metal Shield (ZZ) | ~30,000 RPM |
| Rubber Seal (2RS) | ~20,000 RPM |
6900 – Open type

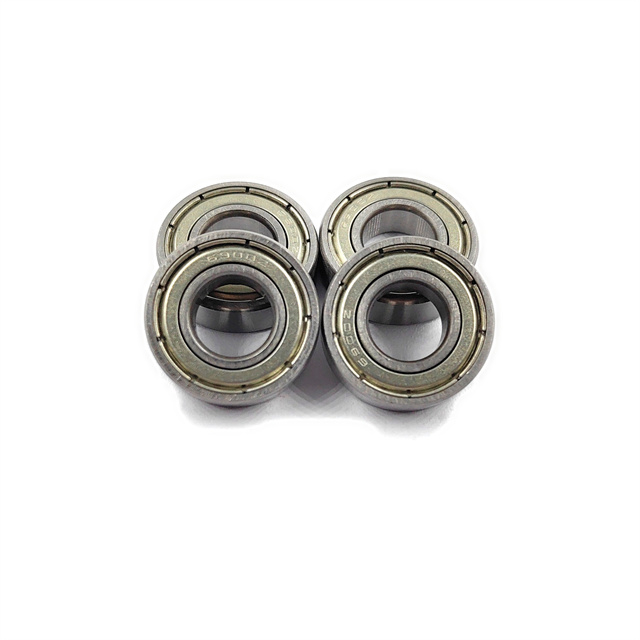

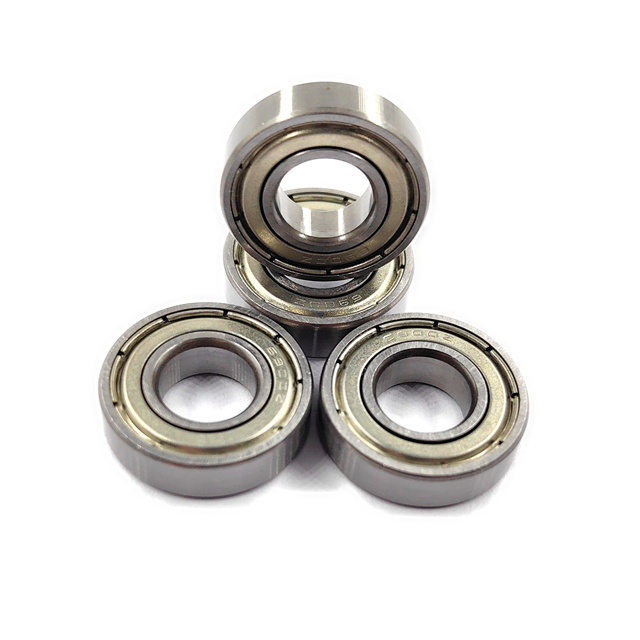

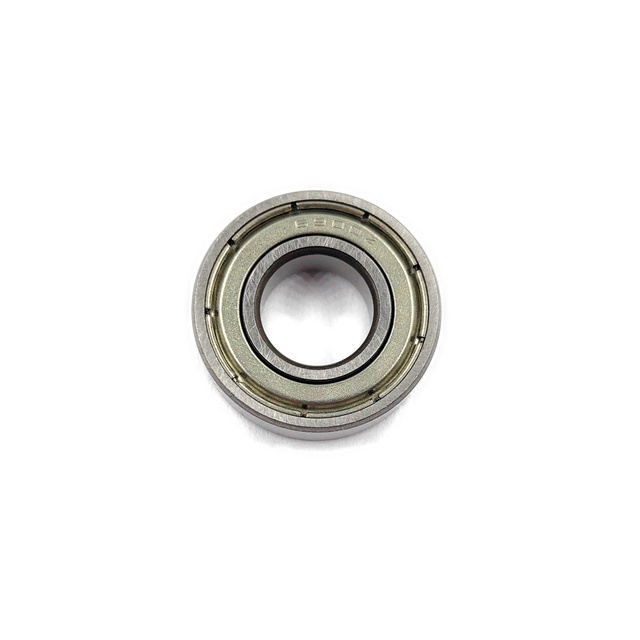

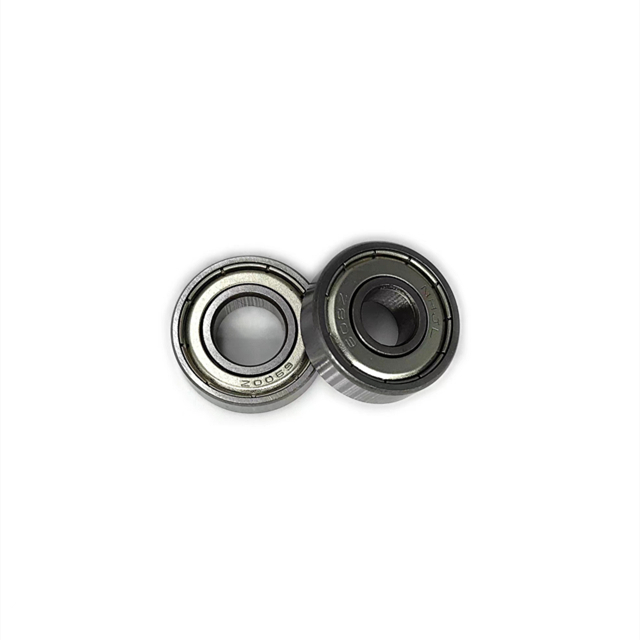

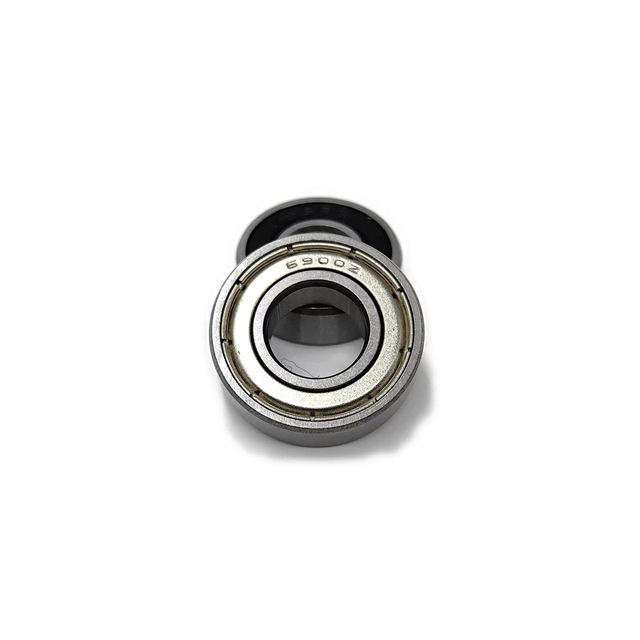

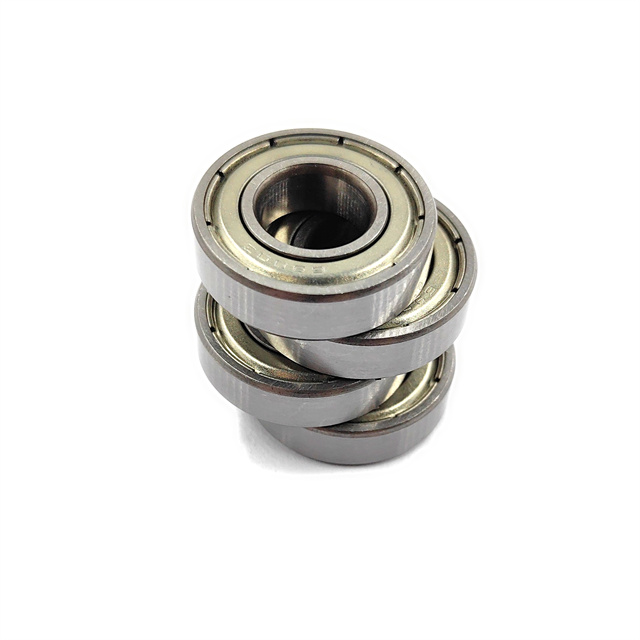

6900ZZ – Double metal shielded
6900-2RS / 6900-2RS1 – Double rubber sealed
Achieving mechanical harmony in compact spaces requires components that do not compromise on structural integrity or kinetic fluidity. Our 6900 bearings are engineered to deliver precise motion control while enduring the most rigorous industrial cycles, solving the common challenges of heat generation and component fatigue.
Frictionless Rotational Dynamics: The micro-polished raceways significantly reduce rolling resistance, allowing your motors to achieve peak efficiency with minimal power draw and extending battery life in portable devices.
Thermal Dissipation Excellence: Carefully selected steel alloys and optimal internal clearances (C0/C2/C3) prevent dangerous heat accumulation during continuous, high-speed operations.
Acoustic Management: Manufactured to strict Z1 and Z2 noise levels, ensuring your final consumer electronics or medical devices operate with whisper-quiet precision.
Versatile Lubrication Retention: Advanced sealing technologies lock in specialized greases, preventing dry friction and shielding internal rolling elements from abrasive particulates.
Structural Resilience: High dynamic (3.20 kN) and static (1.50 kN) load ratings ensure the bearing resists deformation under sudden mechanical shocks or sustained operational stress.
Understanding the exact technical capabilities of your components is vital for successful product integration. The 6900 series is built upon six foundational dimensions of engineering excellence, ensuring it meets the stringent demands of modern manufacturing.
Maintaining an exact 10x22x6 mm standard footprint, this component is subjected to multi-stage optical and mechanical inspections to guarantee flawless integration into your assemblies.
Available in ABEC-1, ABEC-3, and ABEC-5 precision grades to match your specific tolerance requirements.
Guarantees strict dimensional consistency across massive production runs, eliminating assembly line bottlenecks.
Perfectly tailored for micro-equipment where internal installation space is severely restricted.
The core structural foundation relies on high-purity GCr15 bearing steel or corrosion-resistant stainless steel, paired with proprietary heat treatment protocols.
Dramatically extends the anti-fatigue lifespan under heavy, continuous usage.
Maintains absolute structural stability across a wide temperature spectrum from -20°C to +120°C.
Engineered to withstand the harsh, fluctuating environments of heavy-duty industrial applications without warping.
Environmental contamination is the leading cause of premature mechanical failure. We provide tailored barrier solutions to match your specific operational hazards and extend equipment life.
Open Type: Ideal for enclosed systems requiring maximum rotational speed and external oil bath lubrication.
ZZ (Double Metal Shield): Deflects larger debris and dust while maintaining excellent high-speed capabilities.
2RS (Double Rubber Seal): Creates an impenetrable barrier against microscopic dust and moisture, drastically reducing terminal maintenance costs.
Designed explicitly for velocity-intensive micro-applications, the internal architecture minimizes centrifugal stress on the rolling elements, ensuring stability at extreme paces.
Achieves staggering limiting speeds up to 36,000 RPM in open configurations.
Delivers ultra-smooth, low-vibration performance essential for continuous high-load operations.
Optimized ball-to-raceway contact prevents micro-welding and galling at extreme rotational velocities.
The impressive power-to-weight ratio and compact geometry make this bearing the reliable backbone of modern miniaturized machinery across diverse sectors.
Drives the silent, efficient operation of high-speed micro-motors and robotics components.
Ensures absolute mechanical accuracy in precision instrumentation and optical tools.
Powers the reliable daily function of office automation equipment and advanced consumer electronics.
As a primary source manufacturer, we empower your procurement strategy with direct reliability, eliminating intermediary delays and cost inflations for your volume orders.
Comprehensive customization including specialized greases, specific clearances, and custom cage materials.
Value-added services such as laser marking and bespoke packaging for seamless brand integration.
Dedicated technical support from initial prototyping to full-scale volume manufacturing.
Sourcing reliable mechanical components requires a manufacturing partner who intimately understands the critical nature of supply chain stability, cost-efficiency, and rigorous quality assurance. We operate not just as a vendor, but as a direct extension of your own production capabilities.
Direct Manufacturer Advantage: Bypassing third-party markups ensures you receive premium, precision-engineered components at highly competitive volume pricing.
Uncompromising Quality Control: Every production batch undergoes rigorous metallurgical, dimensional, and acoustic testing before dispatch, guaranteeing near-zero defect rates for your assembly lines.
Scalable Production Capacity: From rapid prototyping samples for R&D to massive scheduled deliveries, our advanced facilities adapt seamlessly to your fluctuating inventory demands.
Engineering Consultation: Our dedicated technical teams collaborate directly with your engineers to select the exact precision grades, seals, and lubricants required for your unique applications.
Global Logistics Expertise: Streamlined packaging and dispatch protocols ensure your components arrive in pristine condition, precisely when your production schedule demands them.
The selection depends entirely on the environmental conditions of your application. The ZZ (metal shield) configuration is optimal for clean, high-speed environments where friction must be minimized, allowing operational speeds up to 30,000 RPM. Conversely, the 2RS (rubber seal) provides superior, airtight protection against moisture and fine dust, making it ideal for exposed or harsh environments. However, the rubber contact limits the maximum speed to 20,000 RPM due to slightly increased friction.
Yes. The optimized deep groove architecture is specifically designed to accommodate substantial radial loads (up to 3.20 kN dynamically) while also supporting moderate axial loads in both directions. This dual-load capacity makes the bearing highly versatile for electric motors, robotic joints, and drive shafts where multi-directional forces are frequently present during operation.
Higher ABEC grades (such as ABEC-3 and ABEC-5) indicate significantly tighter tolerances in the bearing's physical dimensions and internal geometry. For your manufactured products, this translates directly to less mechanical runout, smoother rotation, and drastically reduced noise at high speeds. If you are manufacturing high-precision medical devices, aerospace components, or optical instruments, upgrading to a higher ABEC grade is crucial for ensuring absolute operational accuracy.
While our standard pre-greased bearings operate flawlessly within a broad range of -20°C to +120°C, we offer specialized lubrication profiles for extreme thermal conditions. Depending on your specifications, we can inject custom high-temperature synthetic greases or low-viscosity, low-temperature oils tailored to your exact thermal requirements, effectively preventing lubricant breakdown, carbonization, and mechanical seizing.
Absolutely. We offer comprehensive OEM branding services designed to integrate seamlessly with your supply chain. This includes precision laser etching of your company's specific part numbers, logos, or tracking codes directly onto the bearing's outer ring or metal shields. Furthermore, we provide customized, private-label packaging solutions to facilitate easier inventory management and reinforce your brand identity in the final assembled machinery.
