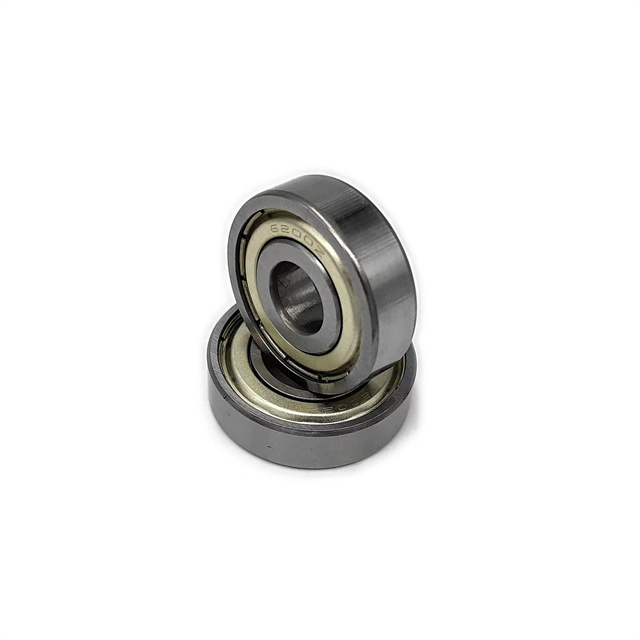

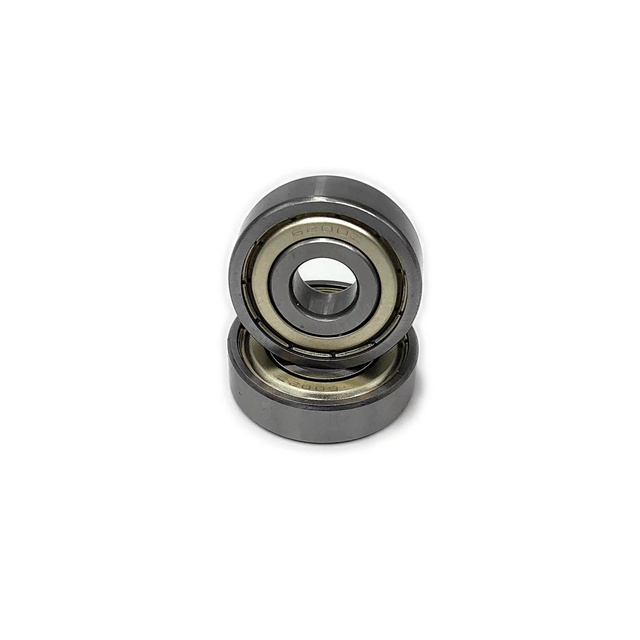

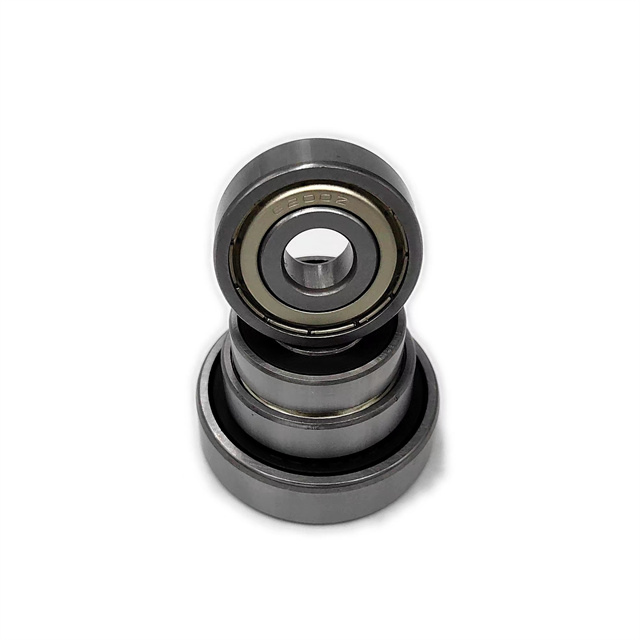

The 6200 deep groove ball bearing is a versatile single-row component engineered for applications requiring a compact footprint and reliable performance under combined radial and limited axial loads. It offers optimized load distribution and stable operation across varying speeds, making it a preferred choice for industrial machinery and power transmission systems.
| Quantity: | |
|---|---|
When your mechanical assemblies demand relentless reliability under continuous operational stress, the 6200 deep groove ball bearing stands as the definitive solution. Crafted with meticulous engineering, this bearing transforms raw mechanical power into a seamless, whisper-quiet rotation. As you handle the component, the flawless, polished finish of the GCr15 bearing steel or premium stainless steel conveys immediate structural integrity and precision craftsmanship. The optimized raceway curvature ensures that internal friction is practically eliminated, mitigating heat generation and significantly extending the fatigue life of your critical equipment. For engineering and procurement teams looking to eradicate unexpected downtime and reduce costly maintenance overhead, this bearing provides an incredibly robust foundation. It effortlessly manages combined radial and limited axial loads, operating with a smooth, vibration-free acoustic profile that enhances the overall refinement of your finished machinery. By integrating these precision-engineered components into your production lines, you are directly investing in uninterrupted performance, maximizing energy efficiency, and lowering long-term operational costs across your entire product portfolio.
Parameter | Value | Description |
Bearing Model | 6200 | Deep Groove Ball Bearing |
Inner Diameter (d) | 10 mm | Shaft diameter |
Outer Diameter (D) | 30 mm | Housing bore diameter |
Width (B) | 9 mm | Bearing width |
Chamfer (r min) | 0.6 mm | Minimum chamfer size |
Item | Specification |
Bearing Structure | Single-row deep groove ball bearing |
Accuracy Grades | ABEC-1 / ABEC-3 / ABEC-5 |
Acoustic Performance | Z1 / Z2 |
Seal / Shield Types | Open / ZZ / 2RS |
Raceway Material | GCr15 bearing steel / Stainless steel |
Cage Configuration | Steel cage / Polyamide cage |
Lubrication Method | Factory-filled grease or oil |
Operating Temperature | -20°C to +120°C |
Load Type | Value |
Dynamic Load Rating (Cr) | Approx. 7.35 kN |
Static Load Rating (Cor) | Approx. 3.35 kN |
Load ratings are reference values and may vary depending on internal clearance, lubrication type, and operating conditions.
Bearing Version | Limiting Speed |
Open Type | ~23,000 RPM |
Metal Shield (ZZ) | ~18,000 RPM |
| Rubber Seal (2RS) | ~13,000 RPM |

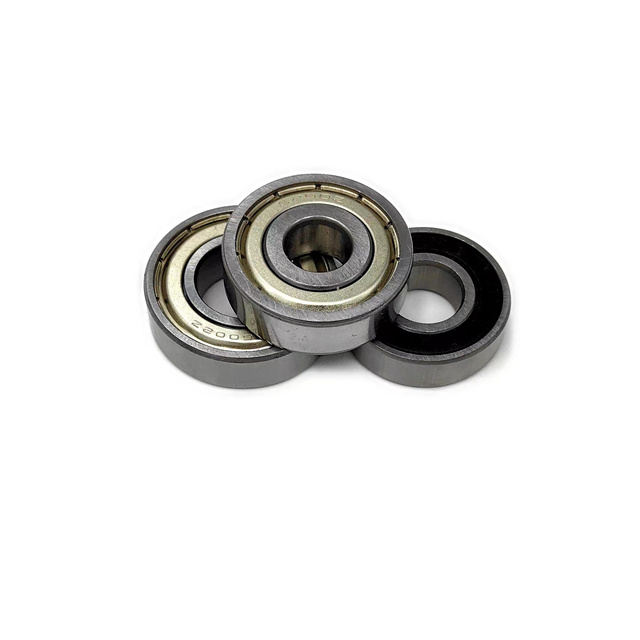

6200 – Open bearing

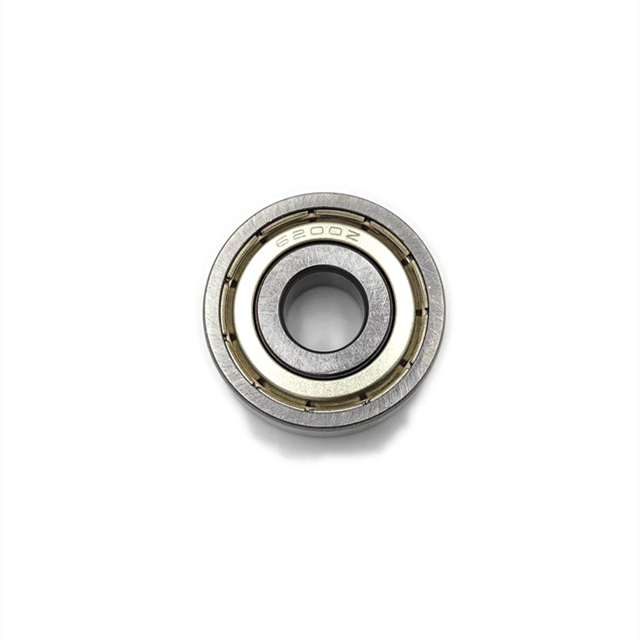

6200ZZ – Double metal shielded
6200-2RS / 6200-2RS1 – Double rubber sealed
Engineered to elevate your machinery's efficiency, our 6200 series bearings are packed with functional features designed to solve real-world mechanical challenges. We focus on structural refinement and material excellence to ensure every rotation adds tangible value to your production output.
Enhanced Load Distribution: The meticulously calculated raceway curvature maximizes the contact area between the rolling elements and the rings, evenly distributing mechanical stress and preventing premature wear during heavy-duty operational cycles.
Acoustic Excellence: Rated strictly at Z1 and Z2 acoustic performance levels, these bearings operate with a hushed, vibration-free hum. This is absolutely crucial for noise-sensitive environments like compact electric motors and automated indoor systems.
Thermal Resilience: Capable of maintaining structural integrity from -20°C to +120°C, they actively prevent thermal expansion issues, ensuring your equipment runs flawlessly whether deployed in freezing storage facilities or high-heat manufacturing plants.
Friction Reduction Technology: The highly polished internal surfaces and precision-matched ball sets drastically reduce rotational drag. This directly translates to lower energy consumption and reduced motor strain for your motorized applications.
Understanding the intricate details of the 6200 bearing ensures you make the most informed procurement decision for your specific engineering requirements. Here is a deep dive into its core capabilities.
Measuring precisely at 10x30x9mm, this single-row deep groove ball bearing is purposefully engineered to outperform the standard 6000 series in radial load capacity. It provides a highly robust solution for engineers dealing with strict spatial constraints who simply cannot compromise on load-bearing strength. It fits perfectly into compact housings while delivering exceptional long-term durability.
We utilize premium GCr15 bearing steel alongside high-grade stainless steel options, both subjected to a strictly controlled, multi-stage heat treatment process. This metallurgical refinement creates a deeply hardened surface that powerfully resists micro-welding and spalling, ensuring an extended fatigue life even under continuous, high-stress operations.
Built for both blistering speed and relentless endurance, the open configuration achieves an impressive 23,000 RPM. Supported by a robust dynamic load rating of 7.35 kN and a static load rating of 3.35 kN, this bearing guarantees stable, low-noise operation across a wide temperature spectrum, safeguarding your machinery's performance metrics.
Tailor the bearing's defense mechanism directly to your specific environment. Choose the Open type for clean, oil-lubricated internal systems; the ZZ double metal shields to deflect dry particulates and dust; or the 2RS double rubber seals to lock in vital grease while locking out moisture and abrasive contaminants, drastically reducing your maintenance intervals.
We empower your brand with highly flexible, application-driven OEM solutions. From selecting ABEC-1, 3, or 5 precision grades and C0, C2, or C3 internal clearances, to specifying long-life, high-speed, or high-temperature greases. We additionally provide laser marking for part numbers and customized packaging to streamline your internal inventory management.
This bearing acts as the silent, dependable workhorse behind diverse industrial sectors. It is the preferred, field-tested choice for micro-motors, industrial blowers, fluid-handling pumps, heavy-duty power tools, and complex automation systems, effortlessly handling high-frequency work cycles and complex radial-axial loads without faltering.
As a direct source manufacturer, we eliminate unnecessary intermediary markups, offering highly competitive factory pricing. Our scalable production capacity ensures that whether you require a limited pilot run or consistent, high-volume shipments, your supply chain remains completely uninterrupted, perfectly balancing elite mechanical performance with strict budget adherence.
Selecting the right manufacturing partner is just as critical as selecting the right mechanical component. We align our advanced production capabilities directly with your operational goals, ensuring every shipment strengthens your market position.
Uncompromising Quality Control: Every single bearing undergoes multi-stage dimensional, visual, and acoustic verification before leaving our facility, guaranteeing out-of-the-box reliability and maintaining a zero-defect tolerance policy.
Scalable Output Capacity: From initial engineering prototyping to massive volume runs, our agile manufacturing lines adapt seamlessly to your procurement schedules, ensuring you never face costly stockouts during peak production seasons.
Dedicated Engineering Support: Our technical team collaborates closely with your engineers, providing expert guidance on clearance selection, lubrication matching, and sealing configurations to maximize the lifespan of your specific application.
Streamlined Global Logistics: We deeply understand the critical nature of lead times. Our optimized industrial packaging and dispatch protocols ensure your components arrive in pristine condition, precisely when your assembly lines require them.
The 6200 series is specifically engineered with a slightly larger outer diameter (30mm vs 26mm) and width (9mm vs 8mm) compared to the 6000 series, allowing for larger internal rolling elements. This design significantly increases both the dynamic and static load-bearing capacities, making it ideal for applications that require higher mechanical strength while maintaining the exact same 10mm bore diameter.
The optimal choice depends entirely on your operating environment. The ZZ (metal shield) configuration offers excellent protection against larger dust particles and operates with much lower friction, making it suitable for high-speed applications up to 18,000 RPM. Conversely, the 2RS (rubber seal) provides a tighter, physical barrier against moisture, fine dust, and liquid contaminants, making it perfect for harsh environments, though it limits the maximum speed to approximately 13,000 RPM due to inherent seal friction.
Yes, we offer fully customizable internal clearances including C0 (standard), C2 (tight), and C3 (loose). For high-temperature environments where thermal expansion of the inner ring and rolling elements is expected, we highly recommend selecting the C3 clearance. This extra internal space prevents bearing seizure and ensures smooth, continuous operation as the metal expands.
By default, our bearings are factory-filled with a premium, long-life lithium-based grease suitable for general industrial use within the standard -20°C to +120°C range. However, for specialized OEM orders, we can easily substitute this with high-speed spindle oil, food-grade compliant grease, or extreme-temperature synthetic greases tailored to your exact operational specifications.
Consistency is achieved through our highly controlled grinding and honing processes, which ensure ultra-smooth raceway finishes that eliminate micro-vibrations. Furthermore, we utilize automated vibration testing equipment on the assembly line to measure and verify the acoustic signature of every single bearing, ensuring that your high-volume orders maintain a uniform, whisper-quiet performance batch after batch.
