The 6000 deep groove ball bearing is a versatile, single-row radial bearing engineered for medium-load, medium-speed industrial applications. It delivers predictable operational stability, reduced friction, and reliable performance in continuous-duty environments, making it an ideal all-round solution for OEM assemblies and general machinery.
| Quantity: | |
|---|---|
The 6000 Deep Groove Ball Bearing is meticulously crafted to serve as the silent, unyielding core of your mechanical assemblies. When held, the cold, highly polished finish of the GCr15 carbon steel speaks to its refined heat treatment, offering a tactile assurance of structural density and wear resistance. During operation, the precisely honed raceways and perfectly matched rolling elements produce a fluid, barely perceptible hum, virtually eliminating the harsh vibrations that lead to premature equipment fatigue. This translates directly into extended maintenance intervals and lower operational costs for your assembly lines. By minimizing internal rolling friction, this bearing maximizes kinetic energy transfer, ensuring that electric motors run cooler and fluid pumps operate with heightened efficiency. Whether subjected to the relentless spinning of industrial blowers or the rapid, jarring torque shifts of heavy-duty power tools, its robust architecture maintains strict concentricity. This meticulous craftsmanship ensures that every rotation contributes to the overall reliability of your end products, safeguarding your manufacturing reputation in a fiercely competitive industrial landscape.
Parameter | Value | Description |
Bearing Model | 6000 | Deep Groove Ball Bearing |
Inner Diameter (d) | 10 mm | Shaft diameter |
Outer Diameter (D) | 26 mm | Housing bore diameter |
Width (B) | 8 mm | Bearing width |
Chamfer (r min) | 0.5 mm | Minimum chamfer size |
Item | Specification |
Bearing Type | Single-row deep groove ball bearing |
Precision Grade | ABEC-1 / ABEC-3 / ABEC-5 |
Noise Level | Z1 / Z2 |
Sealing Type | Open / ZZ / 2RS |
Material | GCr15 / Stainless Steel |
Cage Material | Pressed steel / Polyamide |
Lubrication | Grease or oil (application-specific) |
Operating Temperature | -20°C to +120°C |
Load Type | Value |
Dynamic Load Rating (Cr) | Approx. 4.55 kN |
Static Load Rating (Cor) | Approx. 1.95 kN |
Actual load ratings may vary based on clearance class, material selection, and lubrication conditions.
Bearing Version | Max Speed |
Open Type | ~28,000 RPM |
Metal Shield (ZZ) | ~22,000 RPM |
| Rubber Seal (2RS) | ~16,000 RPM |
6000 – Open bearing

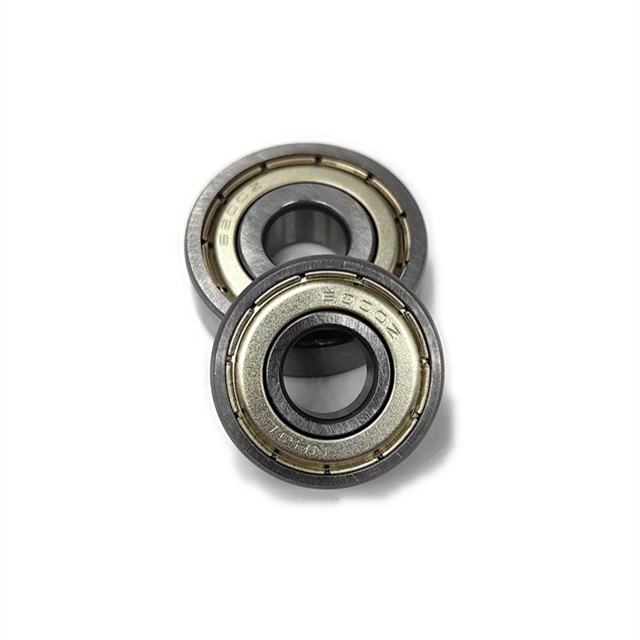

6000ZZ – Double metal shielded

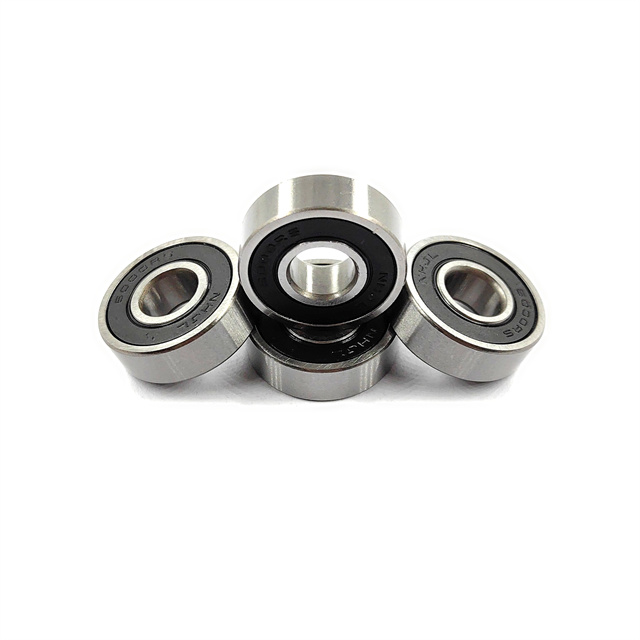

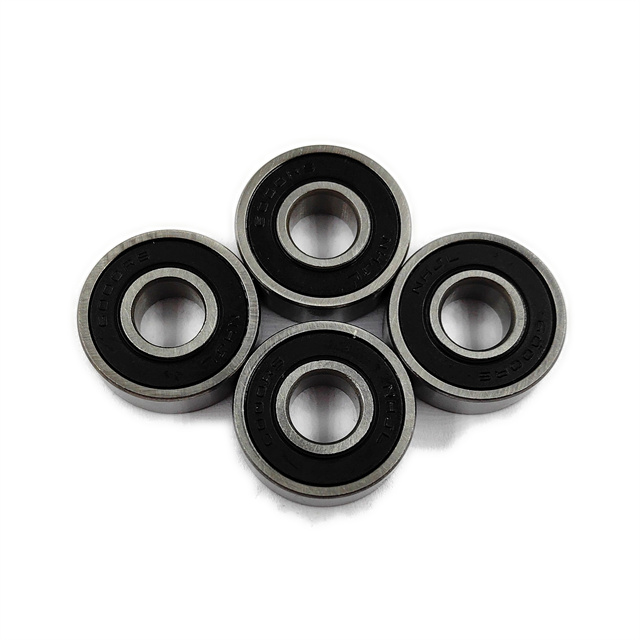

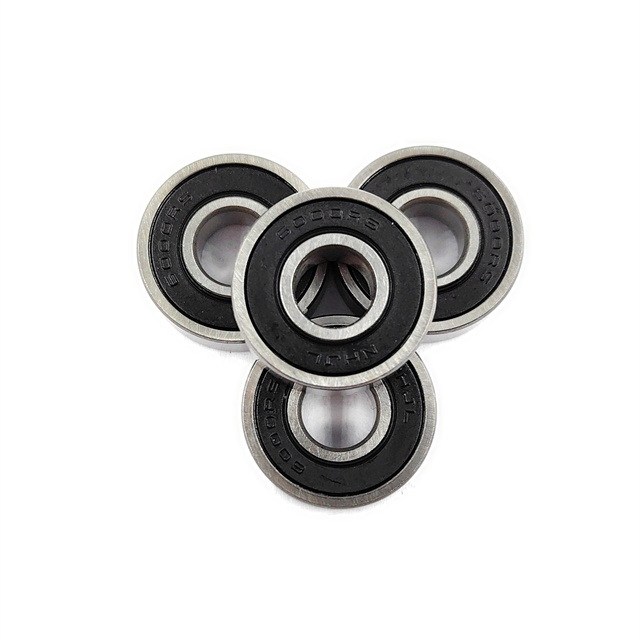

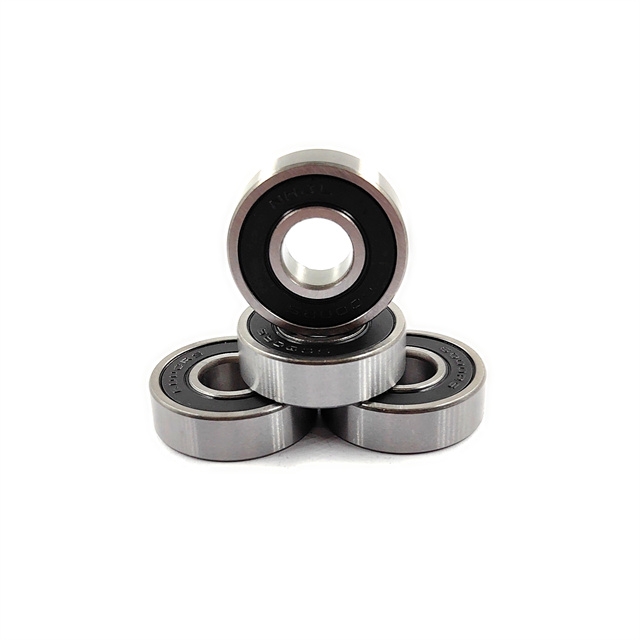

6000-2RS / 6000-2RS1 – Double rubber sealed
Our 6000 series bearings are engineered to elevate the performance baseline of your mechanical systems. By focusing on structural integrity and kinetic fluidity, we provide a component that actively reduces downtime and enhances overall machine output.
Frictionless Energy Transfer: The highly polished internal raceways drastically reduce rolling resistance, allowing your electric motors and mechanical drives to operate with maximum energy efficiency and minimal heat generation.
Acoustic Refinement: Achieving Z1 and Z2 noise levels, these bearings operate with a smooth, quiet profile, which is absolutely crucial for noise-sensitive environments like HVAC systems and indoor automation equipment.
Thermal Resilience: Formulated to maintain dimensional stability across a wide temperature spectrum from -20°C to +120°C, ensuring reliable startup in freezing conditions and sustained operation in high-heat industrial processes.
Predictable Load Distribution: The optimized internal geometry evenly distributes radial and moderate axial forces, preventing localized wear and extending the functional lifespan of the entire rotating assembly.
Understanding the exact capabilities of your components is vital for engineering excellence. The 6000 series is built upon a foundation of strict metallurgical standards and adaptable configurations to meet diverse industrial demands.
Delivering a standardized 10x26x8 mm footprint, these bearings are available in ABEC-1, ABEC-3, and ABEC-5 precision grades. This guarantees flawless integration, high concentricity, and vibration-free rotation in critical motor assemblies, ensuring your production lines maintain strict quality standards.
Forged from premium GCr15 bearing steel or corrosion-resistant stainless steel. Our proprietary heat treatment process achieves the perfect equilibrium between surface hardness and core toughness, ensuring exceptional wear resistance during continuous, heavy-duty operational cycles.
Adapt to any environmental challenge with three distinct configurations: Open for ultra-high-speed applications, ZZ (dual metal shields) for deflecting solid debris, and 2RS (dual rubber seals) for an impenetrable defense against moisture, dust, and particulate contamination in harsh environments.
Engineered for formidable load-bearing capacity, supporting dynamic loads up to 4.55 kN and static loads of 1.95 kN. Combined with maximum speeds reaching 28,000 RPM, they deliver low-friction, energy-conserving performance that directly improves the operational efficiency of your machinery.
We empower equipment manufacturers with deep customization capabilities. From specific internal clearances (C0/C2/C3) and specialized lubrication to laser-etched part numbers and bespoke packaging, we align our production directly with your brand's unique technical and presentation requirements.
Every production batch undergoes rigorous in-process inspections at critical manufacturing stages. This relentless quality oversight guarantees that volume orders maintain highly repeatable dimensional accuracy and predictable operational behavior, eliminating the risk of assembly line rejections.
Sourced directly from our manufacturing facilities, we eliminate unnecessary intermediary markups. This streamlined supply architecture ensures stable lead times and unparalleled cost-efficiency for large-scale industrial procurement, protecting your bottom line.
Recognized as a versatile, all-around solution for medium-load and medium-speed operations. They are the component of choice for general-purpose electric motors, industrial blowers, fluid handling pumps, power tools, and highly integrated automated systems.
Selecting the right manufacturing partner is just as critical as selecting the right component. We focus on building resilient supply architectures that protect your production schedules and enhance your product's market reputation.
Unwavering Production Reliability: Our robust in-house manufacturing capabilities mean we control the timeline. You receive your critical components exactly when your assembly lines need them, eliminating costly production bottlenecks.
Engineering-Led Support: You gain direct access to a team of technical specialists who assist in matching the exact bearing variant—from grease selection to clearance class—to your specific operational environment.
Scalable Manufacturing: Whether you are ramping up a new product line or sustaining massive global distribution, our production infrastructure scales fluidly to meet your volume requirements without compromising a single micron of accuracy.
Transparent Value Structure: By optimizing material utilization and refining our production workflows, we pass the savings directly to you, ensuring your procurement budget is maximized without sacrificing component integrity.
To assist your engineering and procurement teams, we have compiled detailed answers regarding the technical deployment and sourcing of our 6000 series bearings.
The sealing mechanism directly impacts thermal generation and friction. The Open type achieves the highest speeds (up to 28,000 RPM) due to zero seal friction. The ZZ metal shields offer a balance of physical protection and speed (up to 22,000 RPM), while the 2RS rubber seals provide maximum environmental protection with a lower speed limit of approximately 16,000 RPM.
Clearance selection depends on operating temperatures and interference fits. C0 is the standard clearance for general applications. C2 provides a tighter fit for high-precision, low-vibration needs. C3 offers greater internal clearance to accommodate thermal expansion in high-temperature environments or when heavy interference fits are utilized on the shaft or housing.
Yes. While standard lithium-based grease covers most industrial applications, we offer customized lubrication filling. This includes high-speed synthetic oils, low-noise greases for acoustic-sensitive equipment, and high-temperature polyurea greases for continuous operation near the 120°C threshold.
We implement strict in-process inspections, utilizing automated optical sorting and precise acoustic testing. Every batch is evaluated for dimensional tolerances, radial runout, and noise levels (Z1/Z2), ensuring that the first bearing performs exactly like the ten-thousandth.
Absolutely. We offer comprehensive OEM services, including precision laser-etching of your company logos and proprietary part numbers directly onto the bearing races. We also tailor our packaging formats—from bulk industrial trays for rapid assembly line feeding to individually sealed boxes for aftermarket distribution networks.
